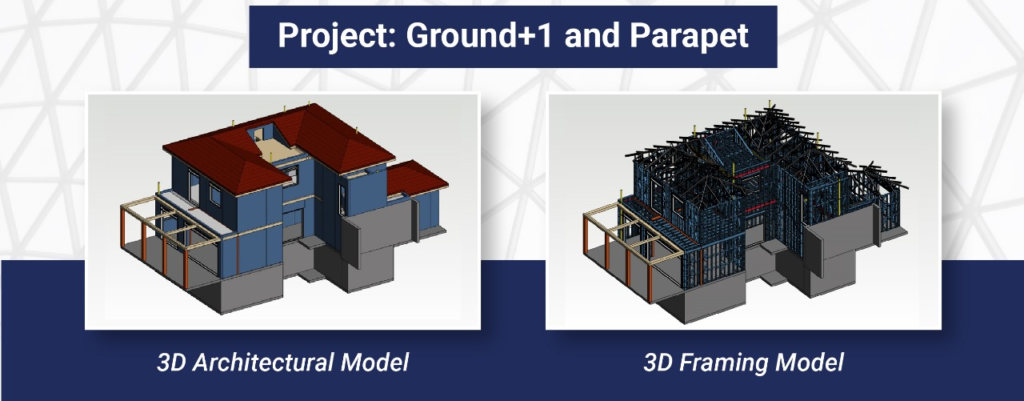

Project of the Month – G+1 & Parapet
Location: Israel
Project Size: 2970.84 Sft
Storey: Ground+1 and Parapet
Project type: Residential
Material: Hybrid Building LGSF, Red Iron, With combination Mitek Trusses.
Scope of work: Detailing
Duration: 3 Days
Software: VertexBD
Machine used: Howick
Project description:
This project involved the detailing of a two-storey building. We began by receiving the initial model and specification from the client, our responsibility was to complete the detailing in accordance with the client’s requirements, adhering to various LGS profiles and connections that met mandatory standards.
This 2,970.84 sq. ft. residential project in Israel features a Ground+1 structure with a parapet, crafted using a hybrid construction approach. The design integrates Light Gauge Steel Framing (LGSF) and red iron, paired with advanced Mitek trusses tailored for superior structural integrity and performance. The project encompasses detailed planning and execution, completed within just 3 days utilizing the powerful Vertex software. Fabrication is performed with precision on a Howick machine, ensuring exceptional quality and adherence to design specifications. This project exemplifies innovation in modern residential construction, merging efficiency, durability, and cutting-edge technology.
Industry Insights
Volume of Steel Framing Products Rises 3.8% in Q3 2024 as More Manufacturers Report, SFIA Says Read More
Technical Snippet

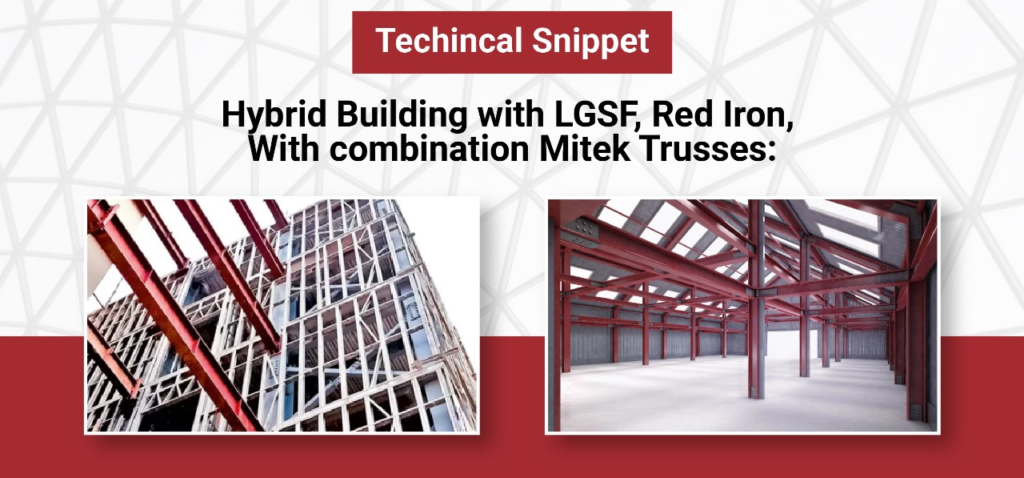

Hybrid Building with LGSF, Red Iron, With combination Mitek Trusses:
In our latest light gauge steel frame (LGSF) construction project, we are utilizing advanced technology with two Howick machines: the Frama 3200 and the Frama 5600. These machines enable precision manufacturing and efficient assembly of structural components.
Profile Specifications
Wall Profiles:
92C-45-1.2: Ideal for interior and exterior walls, this profile provides robust support while maintaining lightweight characteristics.
152C-45-1.2: Used for enhanced structural integrity, this profile is perfect for areas requiring additional strength and insulation.
Floor Joist Profile:
203C-50-1.5: Designed for floor joists, this profile supports heavy loads while ensuring durability and stability throughout the building.
Benefits of Using Mitek Machines:
- High Precision: Ensures accurate fabrication for optimal structural integrity.
- Efficiency: Speeds up production, reducing timelines.
- Cost-Effective: Minimizes material waste and labor costs.
- Versatility: Supports complex and custom designs.
- Automation: Reduces errors and enhances consistency.
- Sustainability: Optimizes material usage for eco-friendliness.
- Quality: Produces durable, reliable trusses.
